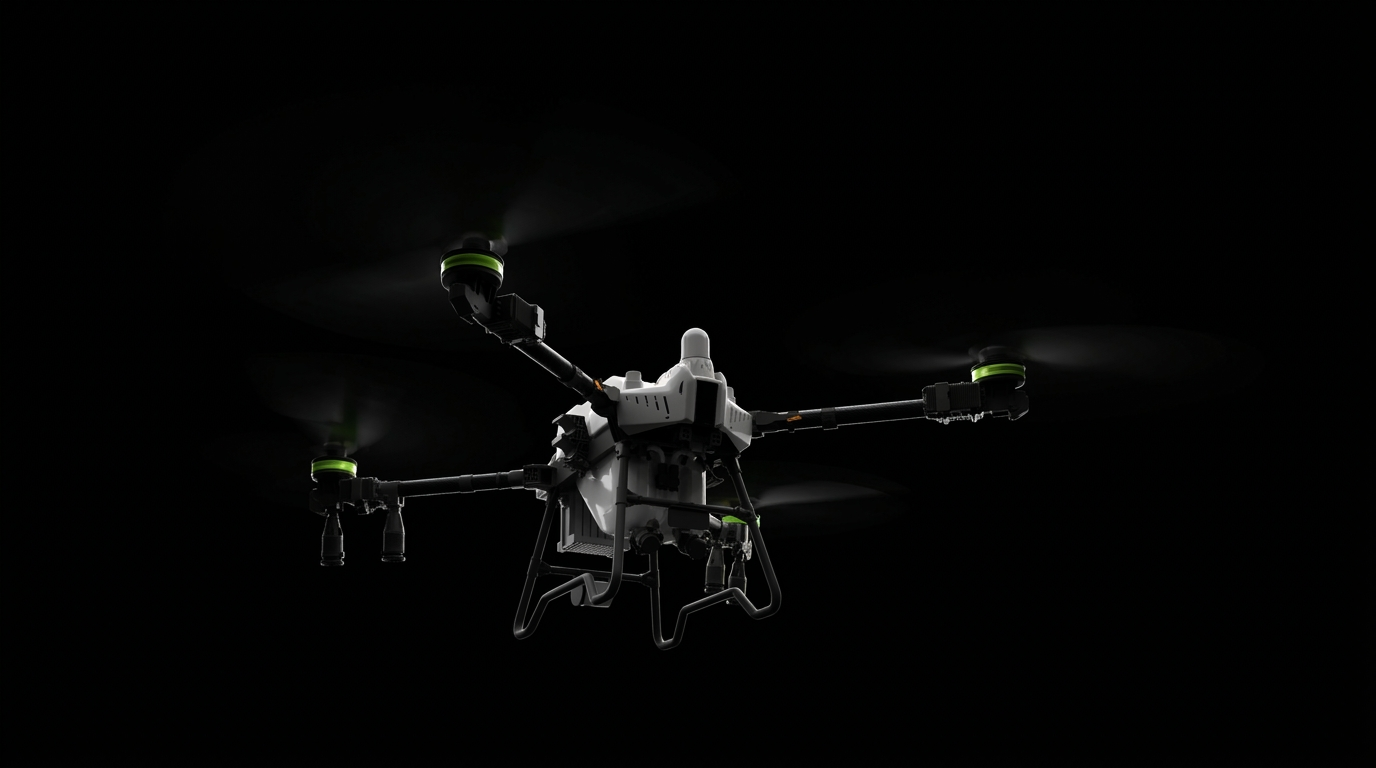

AGRI 225 Agricultural Spray Drone
Shaped by the field. Backed by ASD.
The AGRI 225 is built for the demands of modern agricultural application, combining powerful spray capabilities, practical design, and operator-focused functionality. From the field to the shop, it's supported by the U.S.-based expertise, service, and nationwide dealer network behind Agri Spray Drones.
Ready for the work ahead.
The AGRI 225 combines powerful application capabilities, field-ready hardware and software, intelligent sensing, and operator-focused design to meet the demands of agricultural application. Every part of the experience is supported by the technical expertise, service infrastructure, and nationwide dealer network behind Agri Spray Drones.
Quality checked in the United States.
Manufacturer quality control is one checkpoint. Before an AGRI 225 ships to a customer, ASD adds its own U.S.-based layer of inspection and testing in Boonville, Missouri. Specifically:
Hands-on inspection
Our QC team inspects the aircraft, arms and hardware, battery connections and spray system by hand.
Flight check at the shop
The aircraft is flown at HQ before it ships, not just powered on.
Flight logs through QC tooling
Flight logs from the check are uploaded and run through ASD's quality-control tooling, so the result is recorded, not just observed.
If something does not meet specification, it is corrected or replaced before the aircraft leaves. The same standard is being built into the training ASD dealers receive.
A commitment that doesn't end when the sale closes
Aircraft specifications matter. Who stands behind it matters just as much.
The AGRI 225 is backed by Agri Spray Drones' nationwide dealer network, technical support, parts infrastructure, operator education, and years of agricultural drone experience. A great drone gets you in the field. The right support keeps you there.
Nationwide dealer network
Dealers trained on the drones they sell, with field support close to your acres.
Technical support and education
Extensive product tutorials, courses, articles, tips and more on our Knowledge Hub.
Parts
Well stocked, well supported, keeping your entire fleet ready for spray season.
ASD-developed software
Hosted on U.S.-based servers, developed and managed by ASD Engineering.
AGRI 225 specifications
Current as of October 2026
Application
| Maximum spray flow | 10.6 gal/min, (up to 40L/min), ±5% |
| Pumps | 2 impeller pumps |
| Nozzles | 2 or 4 nozzle configurations |
| Droplet range | 10 to 500 μm |
| Spray width | About 13 to 49 ft (~4 to 15 m) |
| Flow measurement | Electromagnetic flowmeter, 1 to 10.6 gal/min (40L/min), precision within 3% |
Flight
| Rotor configuration | X4 |
| Maximum operating speed | ~ 30.9 mph (45 feet/sec) |
| Maximum tolerable wind | ~27 mph (39 feet/sec) |
| Working height | ~5 to 98 ft (1.5 to 30 meters) above ground, terrain following |
| Maximum flight radius | ~1.24 miles (2,000 meters) |
| Operating temperature | 32°F to 113°F (0°C to 45°C) |
| Propellers | Carbon-fiber propellers |
Sensing and positioning
| Forward sensing | Front LIDAR |
| Upper and rear sensing | Rotating radar, upper and rear |
| Functions | Obstacle avoidance and terrain following |
| Positioning | RTK |
| Lighting | Upgraded LED spotlight for night operations |
Battery and charging
| Battery | ASD-CTB45Ah, 45 Ah (45,000 mAh), IP65 |
| Battery weight | ~38 lbs (17.2 kg) |
| Charging | About 9 minutes from 30% to 95% under specified charging conditions |
| Charger | ASD-C70, 12,400 W dual socket (3,600 W single socket) |
Spreading
| Spreader | ASD-SPD100, 26.4 gal (100 L) capacity |
| Spreading width | ~10 to 40 ft (3 to 12.2 meters) |
| Material size | 0.04 - 0.50 in (1 to 12.7 mm) |
| Maximum load | ~180lbs (81.6 kg) |
| Weighing | Integrated scale heads |
Weight and protection
| Empty weight with battery | 181 lbs (82.1 kg) |
| Maximum takeoff weight | ~353 lbs (160 kg) spraying, spreading or lifting |
| Whole-aircraft protection | IPX6K |
| Module protection | IP67 |
| Folded for transport | Arms folded; 4 ft 3 in x 3 ft x 3 ft 1 in (1290 x 918 x 950 mm) |
Remote and FPV
| Display | 7.02-inch, 1200 x 1920, 1,500 nit |
| System | Android 12, 8 GB + 128 GB |
| Image transmission | 1080p at 60 fps |
| Remote battery | 12,000 mAh, listed at more than 8 hours |
| Remote protection | IP54 |
| FPV camera | 2K at 30 fps, electronic virtual gimbal, dual headlights plus spotlight |
Package contents and pricing will be announced when orders open. Specifications may change before commercial release.
Questions operators are asking
The AGRI 225 is based on the proven EAVision J150 platform, but it is an Agri Spray Drones product with a proprietary design and ASD-directed enhancements. It is a bridge between the technology our customers know today and the U.S.-designed, sourced, assembled and supported drone ecosystem we are building. It is an important step in that transition, not simply a renamed EAVision drone.
AGRI 225 is currently manufactured in China by EAVision. Before reaching customers, aircraft go through ASD's U.S.-based quality-control process in Boonville, Missouri, and are backed by our U.S. team and nationwide dealer network. This lets us bring the AGRI 225 to market under our current regulatory pathway while we establish U.S.-based assembly and manufacturing capabilities.

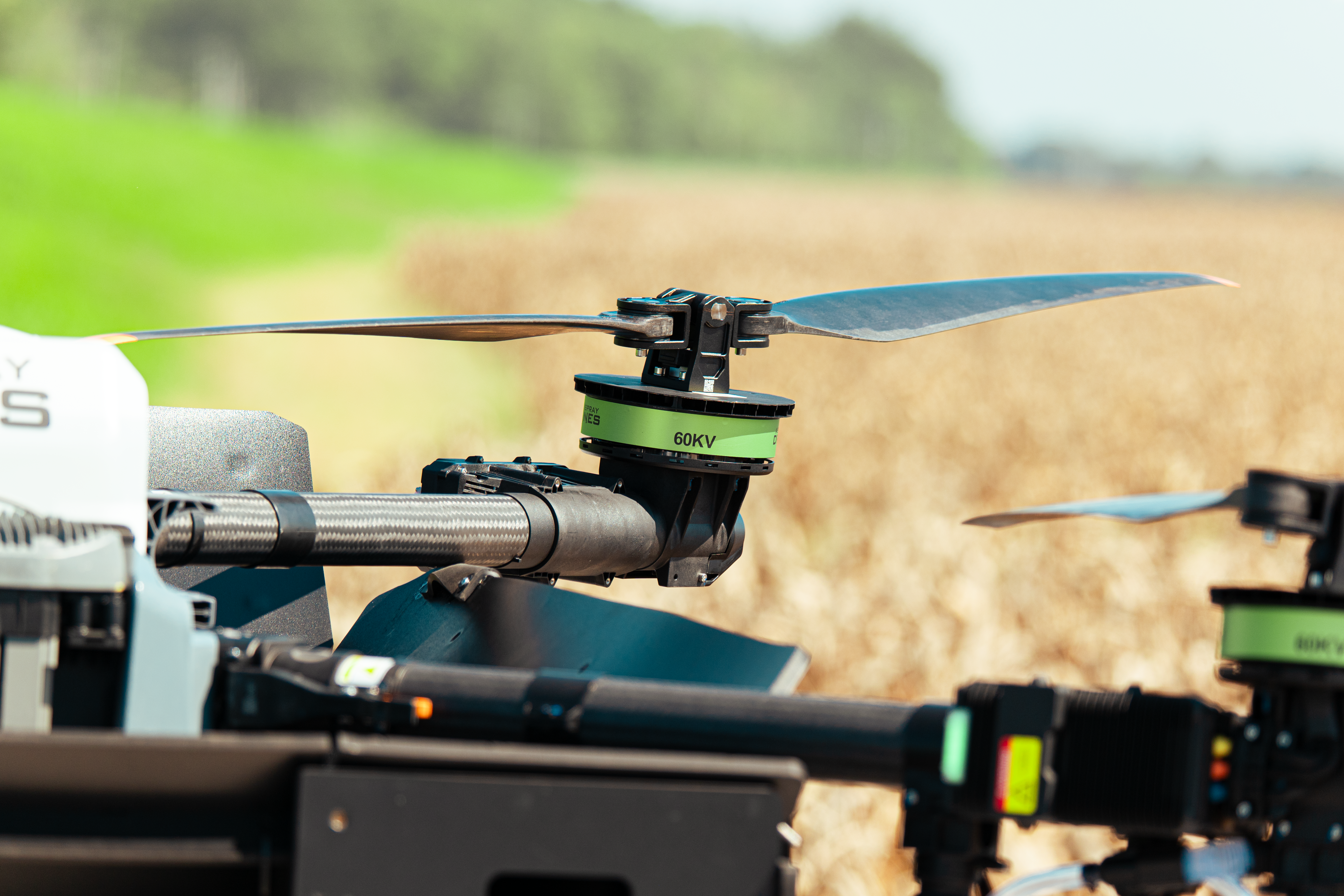

Three systems were updated. The spray system moves more product and measures it more accurately: larger plumbing, a single larger spray ESC and solenoid, an updated atomizer disc, quick-release nozzle mounts and an electromagnetic flowmeter. The power system gets an updated battery terminal with an integrated locking mechanism, and updated battery management system. The flight system gets thicker arms, 316 stainless hardware, updated motors with cooling fins, and carbon-fiber propellers on teeter mounts. The frame is unchanged.
Yes. many parts carry over from the J150, including the remote, FPV, pumps, spreader system, LiDAR and bracket, RTK and SDR antennas, motor ESCs, landing gear, CPU and most cables.
The J150 stays fully supported. ASD is also making improvements available to J150 owners through our nationwide dealer network. Your dealer can walk you through the options and pricing. Get more info here.
AGRI 225 runs ASD-branded software hosted on U.S.-based servers, and ASD decides when an update is released to operators.
Pricing will be announced soon. Sign up below and we will tell you first.
Orders are not open yet. Commercial availability is planned for later this year. Leave your details below to be the first to know when orders can be placed.
Be the first to know when orders can be placed.
Orders for AGRI 225 are not open yet. Leave your details and we will contact you as soon as they are, with pricing and package details.
Prefer to talk to someone now? Find your nearest dealer.
